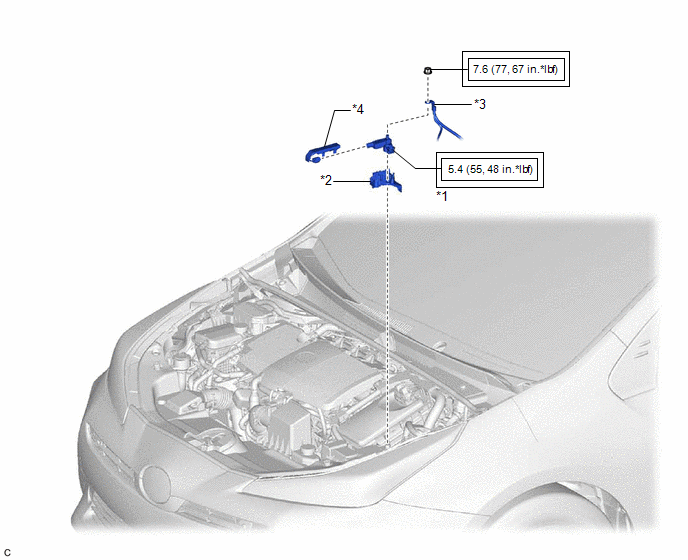

Components [12/2018 - ]
| Callout | Description | Callout | Description |
| *1 | BATTERY STATE SENSOR ASSEMBLY | *2 | BATTERY CURRENT SENSOR HOLDER |
| *3 | ENGINE WIRE | *4 | WIRE HARNESS |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf.cm, ft./bf) | - | - |
