Removal [08/2019 - ]: Procedure

  1. REMOVE INSTRUMENT PANEL FINISH PANEL END RH

    Refer to PROCEDURE - Step 14 [08/2019 - 07/2020] , or refer to PROCEDURE - Step 14 [07/2020 - ]

  2. REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY (w/o Navigation System)

    Refer to PROCEDURE - Step 15 [08/2019 - 07/2020] , or refer to PROCEDURE - Step 15 [07/2020 - ]

  3. REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL UPPER (w/ Navigation System)

    Refer to PROCEDURE - Step 16 [08/2019 - 07/2020] , or refer to PROCEDURE - Step 16 [07/2020 - ]

  4. REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY WITH NAVIGATION RECEIVER ASSEMBLY (w/ Navigation System)

    Refer to PROCEDURE - Step 17 [08/2019 - 07/2020] , or refer to PROCEDURE - Step 17 [07/2020 - ]

  5. REMOVE POWER SWITCH

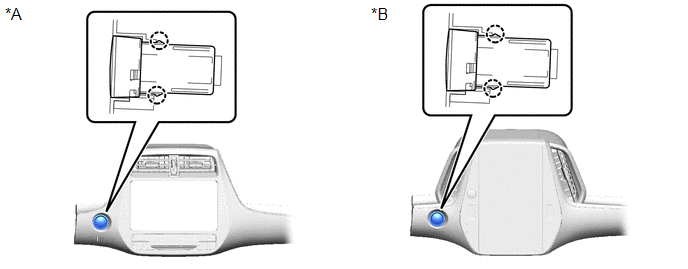

    1. Disengage the 2 claws and remove the power switch.
      GTY734358Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A w/o Navigation System *B w/ Navigation System
