Components [11/2015 -]

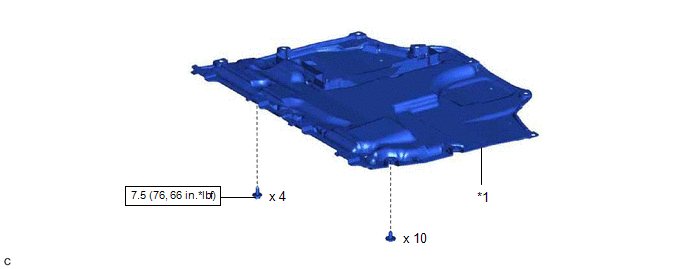

Fig 1: Oil Level Sensor Replacement Components With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
Callout	Description	Callout	Description
*1	NO. 1 ENGINE UNDER COVER	-	-
	Nm (kgfcm, ft.*lbf): Specified torque	-	-

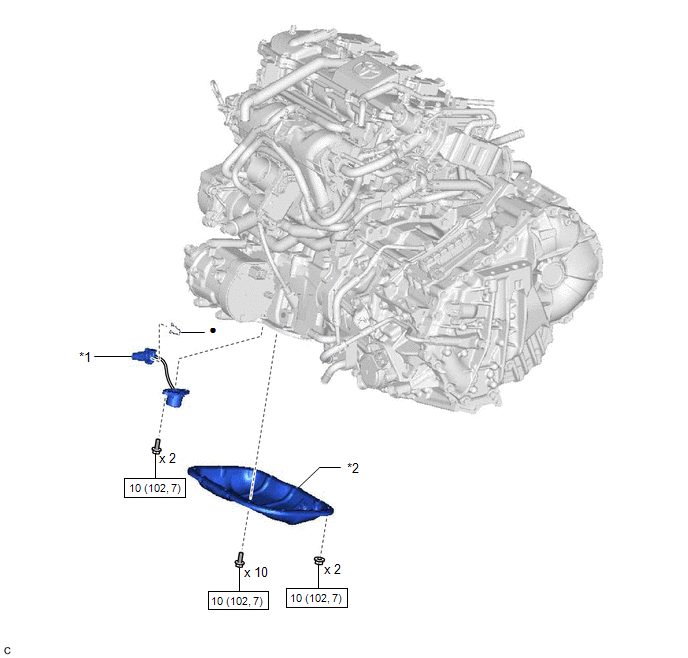

Fig 2: Oil Level Sensor Replacement Components With Torque Specifications (2 Of 2)

Callout	Description	Callout	Description
Callout	Description	Callout	Description
*1	ENGINE OIL LEVEL SENSOR	*2	NO. 2 OIL PAN SUB-ASSEMBLY
	Nm (kgfcm, ft.*lbf): Specified torque	•	Non-reusable part
