Removal [11/2015 - ]: Procedure

  1. REMOVE WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY

    Refer to REMOVAL [11/2015 - ]

  2. REMOVE NO. 1 HEATER AIR DUCT SPLASH SHIELD SEAL

    Refer to PROCEDURE - Step 3 [11/2015 - 12/2018] , or refer to PROCEDURE - Step 3 [12/2018 - ]

  3. REMOVE WATER GUARD PLATE LH

    Refer to PROCEDURE - Step 4 [11/2015 - 12/2018] , or refer to PROCEDURE - Step 4 [12/2018 - ]

  4. REMOVE COWL BODY MOUNTING REINFORCEMENT LH

    Refer to PROCEDURE - Step 5 [11/2015 - 12/2018] , or refer to PROCEDURE - Step 5 [12/2018 - ]

  5. REMOVE OUTER COWL TOP PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 6 [11/2015 - 12/2018] , or refer to PROCEDURE - Step 6 [12/2018 - ]

  6. REMOVE AIR FUEL RATIO SENSOR
    WARNING:

    To prevent burns, do not touch the engine, exhaust manifold or other high temperature components while the engine is hot.

    GTY563663Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the air fuel ratio sensor connector.
      GTY550051Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

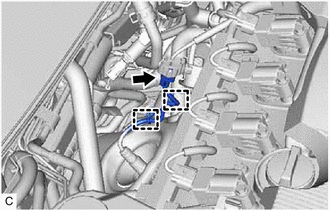

    2. Disengage the 2 wire harness clamps.

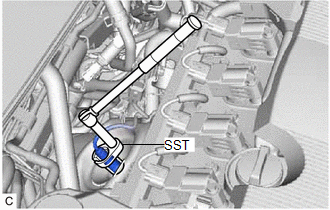

    3. Using SST, remove the air fuel ratio sensor from the exhaust manifold (TWC: Front Catalyst).
      GTY555533Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09224-00011
      NOTE:

      If the air fuel ratio sensor has been struck or dropped, replace it.
