Components [11/2015 - ]

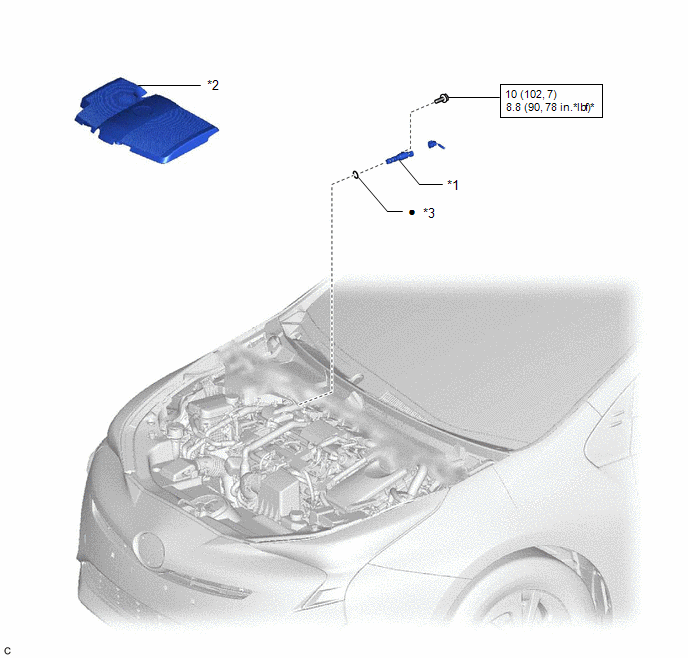

Fig 1: Camshaft Oil Control Valve Replacement Components With Torque Specifications

Callout	Description	Callout	Description
*1	CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY	*2	NO. 1 ENGINE COVER SUB-ASSEMBLY
*3	O-RING	-	-
	N.m (kgf.cm, ft./lbf): Specified torque	*	For use with a union nut wrench
•	Non-reusable part	-	-
