Removal [11/2015 - ]: Procedure

  1. REMOVE NO. 2 ENGINE UNDER COVER

    Refer to PROCEDURE - Step 9 [11/2015 - 08/2016] , or refer to PROCEDURE - Step 9 [08/2016 - 12/2018] , or refer to PROCEDURE - Step 9 [12/2018 - 07/2020] , or refer to PROCEDURE - Step 9 [07/2020 - ]

  2. REMOVE FRONT CENTER FLOOR BRACE

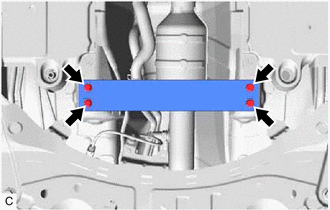

    1. Remove the 4 bolts and front center floor brace.
      GTY550071Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE HEATED OXYGEN SENSOR
    WARNING:

    To prevent burns, do not touch the engine, exhaust pipe or other high temperature components while the engine is hot.

    GTY563662Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

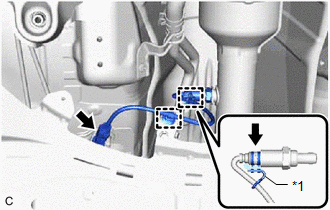

    1. Disconnect the heated oxygen sensor connector.
      GTY542237Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Wire Harness Clamp Bracket
    2. Remove the wire harness clamp.
    3. Remove the wire harness clamp bracket from the heated oxygen sensor.

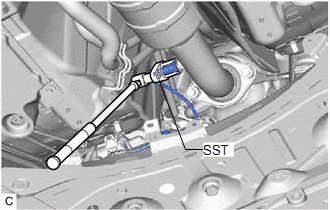

    4. Using SST, remove the heated oxygen sensor from the front exhaust pipe assembly (TWC: Rear Catalyst).
      GTY597762Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09224-00011
      NOTE:

      If the heated oxygen sensor has been struck or dropped, replace it.
