Removal [11/2015 - ]: Procedure

  1. REMOVE REAR MOTOR UNDER COVER LH

    Refer to PROCEDURE - Step 1

  2. DRAIN ENGINE COOLANT (for Engine)

    Refer to PROCEDURE - Step 2 [11/2015 - 08/2016] , or refer to PROCEDURE - Step 2 [08/2016 - 07/2020] , or refer to PROCEDURE - Step 2 [07/2020 - ]

  3. REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 13 [11/2015 - 08/2016] , or refer to PROCEDURE - Step 13 [08/2016 - 12/2018] , or refer to PROCEDURE - Step 13 [12/2018 - 07/2020] , or refer to PROCEDURE - Step 13 [07/2020 - ]

  4. REMOVE AIR CLEANER CAP SUB-ASSEMBLY
    1. Disconnect the mass air flow meter sub-assembly connector.

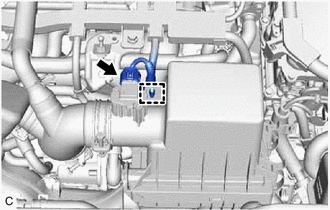

      GTY584130Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the wire harness clamp.
    3. Disengage the 2 clamps.

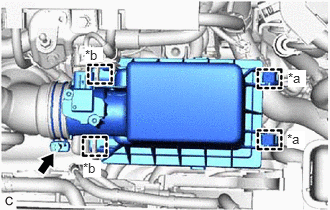

      GTY579067Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Clamp
      *b Guide
    4. Disengage the 2 guides and remove the air cleaner cap sub-assembly from the air cleaner case sub-assembly.
    5. Loosen the hose clamp and remove the air cleaner cap sub-assembly from the air cleaner hose assembly.
  5. REMOVE AIR CLEANER HOSE ASSEMBLY
    1. Slide the clip and disconnect the No. 2 ventilation hose from the cylinder head cover sub-assembly.

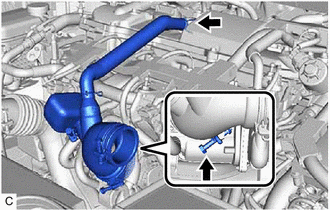

      GTY549967Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Loosen the hose clamp and remove the air cleaner hose assembly from the throttle body assembly.
  6. REMOVE THROTTLE BODY ASSEMBLY
    1. Disconnect the throttle body assembly connector.

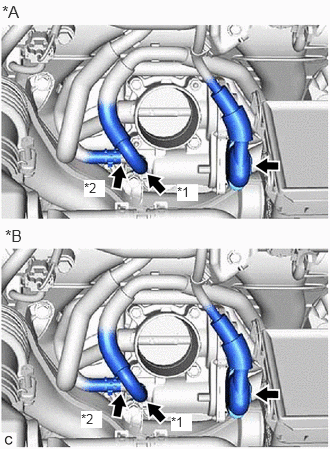

      GTY592421Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A w/ Stud Bolt
      *B w/o Stud Bolt
      *1 Water By-pass Hose
      *2 No. 2 Water By-pass Hose
    2. Slide the 2 clips and disconnect the water by-pass hose and No. 2 water by-pass hose from the throttle body assembly.
    3. w/ Stud Bolt:

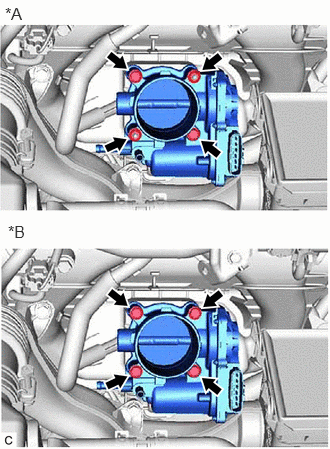

      GTY569841Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A w/ Stud Bolt
      *B w/o Stud Bolt
      1. Remove the 2 bolts, 2 nuts and throttle body assembly from the intake manifold.
    4. w/o Stud Bolt:
      1. Remove the 4 bolts and throttle body assembly from the intake manifold.
  7. REMOVE THROTTLE BODY GASKET
    1. Remove the throttle body gasket from the intake manifold.

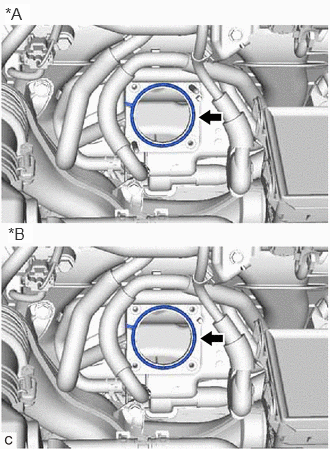

      GTY610282Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A w/ Stud Bolt
      *B w/o Stud Bolt
