Removal [08/2020 - ]: Procedure

REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 20 [08/2020 - 12/2021] , or refer to PROCEDURE - Step 20 [12/2021 - 10/2022] , or refer to PROCEDURE - Step 20 [10/2022 - 10/2023] , or refer to PROCEDURE - Step 20 [10/2023 - ]

REMOVE AIR FUEL RATIO SENSOR

WARNING:

To prevent burns, do not touch the engine, exhaust manifold or other high temperature components while the engine is hot.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

for Sensor 1:

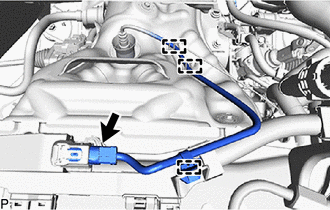

Detach the 3 wire harness clamps.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

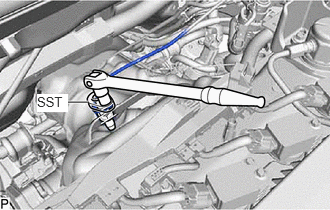

Using SST, remove the air fuel ratio sensor from the exhaust manifold.

NOTE:

If the air fuel ratio sensor has been struck or dropped, replace it.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

for Sensor 2:

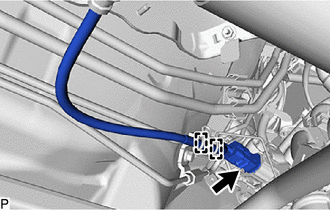

Detach the 2 wire harness clamps.

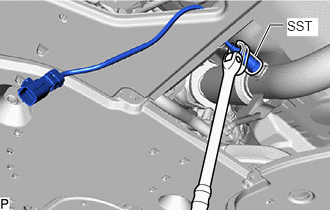

Using SST, remove the air fuel ratio sensor from the front exhaust pipe assembly.

NOTE:

If the air fuel ratio sensor has been struck or dropped, replace it.
