Components [10/2019 - ]

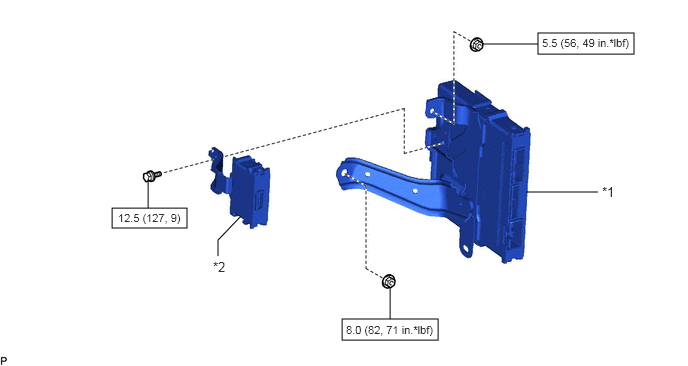

Fig 1: Engine Stop And Start ECU Replacement Components With Torque Specifications [10/2019 - ]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	ENGINE STOP AND START ECU	*2	ENGINE STOP AND START SOLENOID FILTER
	N.m (kgf/cm, ft.lbf): Specified torque	-	-
