Removal [11/2018 - ]: Procedure

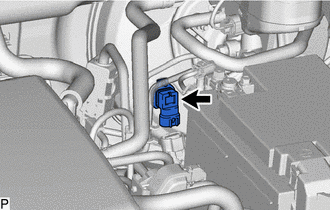

  1. REMOVE VACUUM SENSOR ASSEMBLY
    1. Disconnect the connector from the vacuum sensor assembly.
    2. Remove the vacuum sensor assembly from the brake booster assembly.
      GTY928450Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

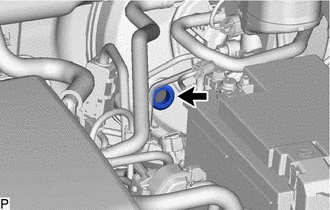

  2. REMOVE VACUUM SENSOR GROMMET
    1. Remove the vacuum sensor grommet from the brake booster assembly.
      GTY848444Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
