Removal [08/2020 - ]: Procedure

Refer to PROCEDURE - Step 20 [08/2020 - 12/2021] , or refer to PROCEDURE - Step 20 [12/2021 - 10/2022] , or refer to PROCEDURE - Step 20 [10/2022 - 10/2023] , or refer to PROCEDURE - Step 20 [10/2023 - ]

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

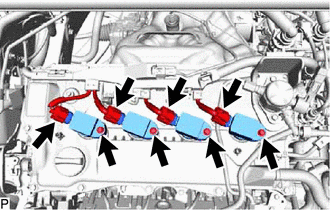

   Disconnect the 4 ignition coil assembly connectors.

2. Remove the 4 bolts and 4 ignition coil assemblies from the cylinder head cover sub-assembly.
   NOTE:

   If an ignition coil assembly has been struck or dropped, replace it.

Refer to PROCEDURE - Step 3
