Components [06/2020 - ]

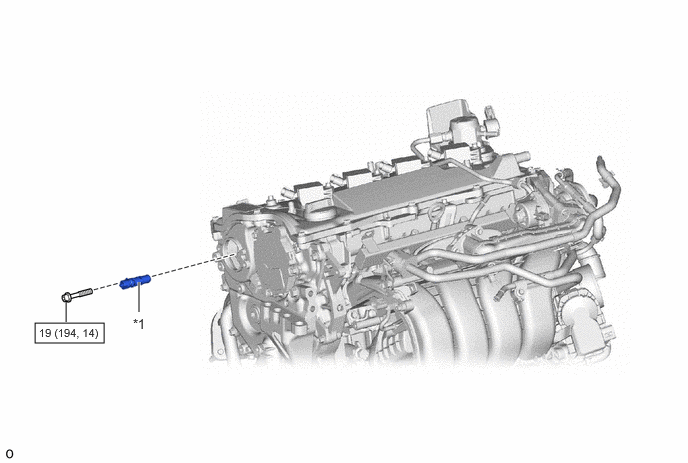

Fig 1: Camshaft Oil Control Valve Replacement Components With Torque Specifications [06/2020 - ]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (EXHAUST CAMSHAFT TIMING GEAR BOLT ASSEMBLY)	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	-	-
