Removal [11/2020 - ]: Procedure

  1. DRAIN ENGINE COOLANT (for Engine)

    Refer to PROCEDURE - Step 1

  2. REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 24 [11/2020 - 10/2024] , or refer to PROCEDURE - Step 24 [10/2024 - ]

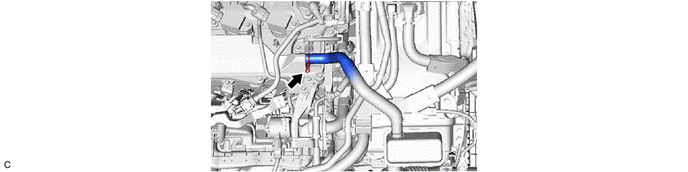

  3. DISCONNECT NO. 2 VENTILATION HOSE
    1. GTY999474Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

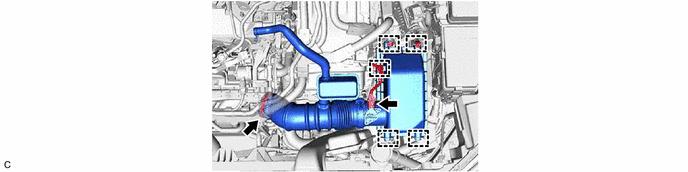

  4. REMOVE AIR CLEANER CAP WITH AIR CLEANER HOSE
    1. GTY998523Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

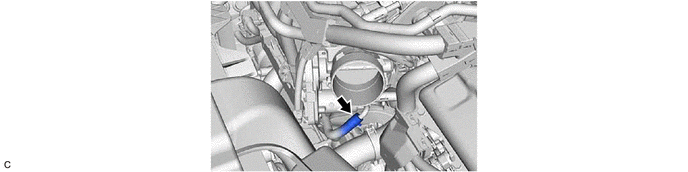

  5. DISCONNECT NO. 5 WATER BY-PASS HOSE
    1. GTY999472Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. SEPARATE THROTTLE BODY WITH MOTOR ASSEMBLY
    1. GTY999420Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disconnect the throttle body with motor assembly connector.
      2. Using an 8 mm socket wrench, remove the 3 bolts and separate the throttle body with motor assembly from the intake manifold.

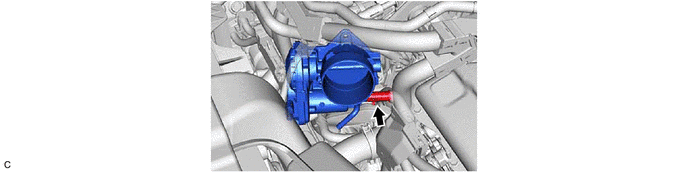

  7. DISCONNECT NO. 6 WATER BY-PASS HOSE
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE:

    If the throttle body with motor assembly has been struck or dropped, replace it.
    1. GTY999490Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

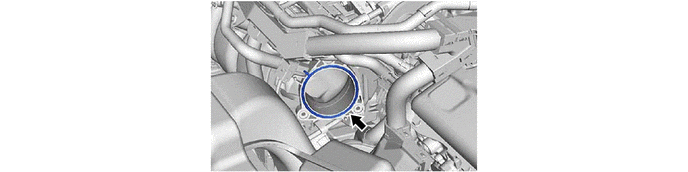

  8. REMOVE THROTTLE BODY GASKET
    1. GTY999484Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
