Components [03/2019 - ]

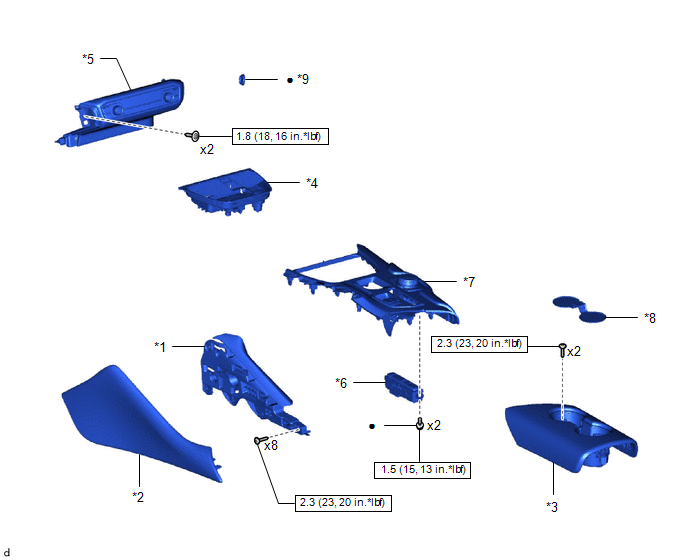

Fig 1: Stop And Start System Cancel Switch Assembly Replacement Components With Torque Specifications
| Callout | Description | Callout | Description |
| *1 | CONSOLE PANEL AND CONSOLE PANEL RETAINER | *2 | CONSOLE SIDE PANEL |
| *3 | FRONT CONSOLE BOX COVER | *4 | INSTRUMENT PANEL FINISH LOWER PANEL |
| *5 | STOP AND START SYSTEM CANCEL SWITCH (PATTERN SELECT SWITCH ASSEMBLY) | *6 | FRONT CONSOLE ARMREST ASSEMBLY |
| *7 | UPPER CONSOLE PANEL SUB-ASSEMBLY | *8 | NO. 1 CONSOLE BOX SILENCER PAD |
| *9 | RUBBER PLUG | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part |
