Servo Motor
›
Components [07/2020 - ]
Components [07/2020 - ]

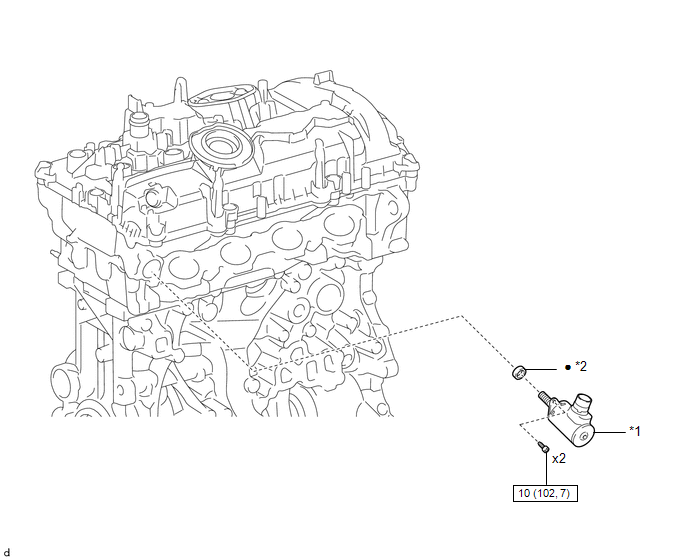

Fig 1: Servo Motor Replacement Components With Torque Specifications [07/2020 - ]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout
Description
Callout
Description
*1
SERVO MOTOR
*2
O-RING
N*m (kgf*cm, ft.*lbf): Specified torque
•
Non-reusable part
