Components [03/2019 - ]

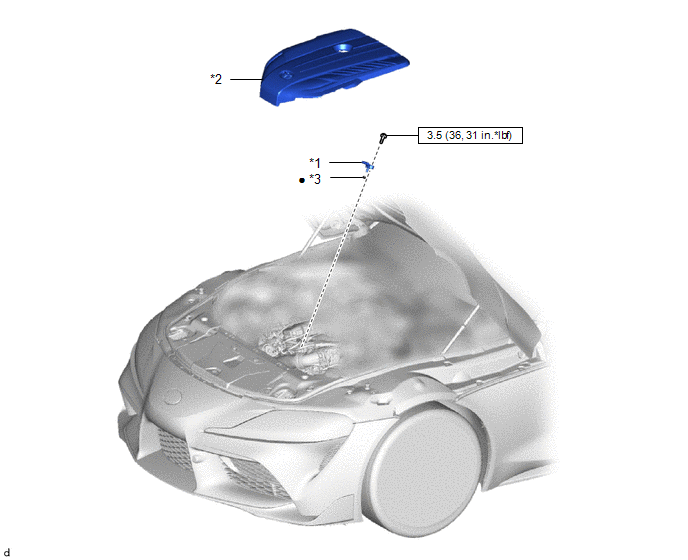

Fig 1: Air Pressure Sensor Replacement Components With Torque Specifications [03/2019 - ]
GTY1157699Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 AIR PRESSURE SENSOR *2 NO. 1 ENGINE COVER SUB-ASSEMBLY
*3 O-RING - -
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part
