Components [07/2020 - ]

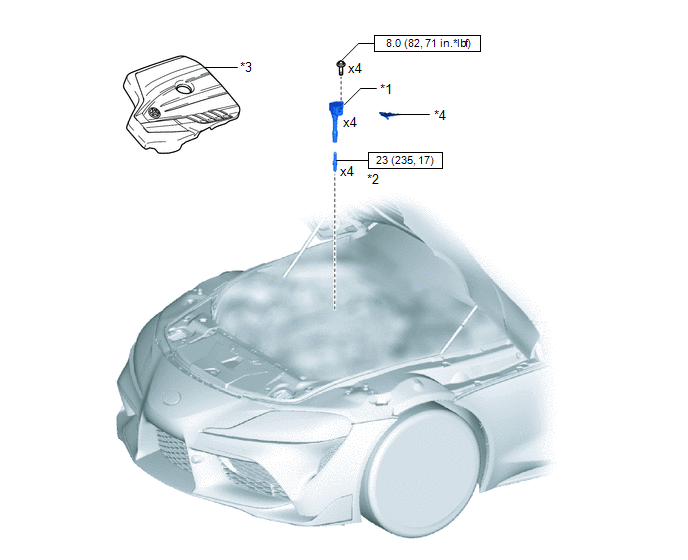

Fig 1: B46 Ignition Coil And Spark Plug Replacement Components With Torque Specifications

Callout	Description	Callout	Description
*1	IGNITION COIL ASSEMBLY	*2	SPARK PLUG
*3	NO. 1 ENGINE COVER SUB-ASSEMBLY	*4	SERVICE COVER
	N.m (kgf/cm, ft.lbf): Specified torque	-	-
