Removal [08/2015 - ]: Procedure

  1. REMOVE INTAKE MANIFOLD

    (Refer to REMOVAL [08/2015 - 11/2017] , or refer to REMOVAL [11/2017 - ] )

  2. REMOVE ENGINE COOLANT TEMPERATURE SENSOR
    1. Disconnect the connector from the engine coolant temperature sensor.

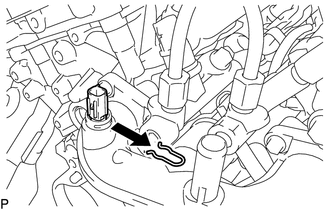

    2. Remove the clip and engine coolant temperature sensor from the rear water by-pass joint.
      GTY589685Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
