Components [07/2020 - ]

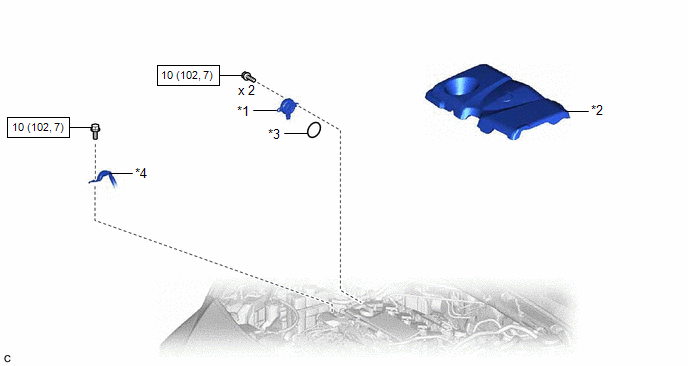

Fig 1: Camshaft Oil Control Solenoid Replacement Components With Torque Specification

Callout	Description	Callout	Description
*1	CAM TIMING OIL CONTROL SOLENOID ASSEMBLY	*2	NO. 1 ENGINE COVER SUB-ASSEMBLY
*3	O-RING	*4	NO. 2 EARTH WIRE
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part
*	Precoated part	-	-
