Removal [07/2020 - ]: Procedure

  1. REMOVE MASS AIR FLOW METER SUB-ASSEMBLY
    1. Disconnect the mass air flow meter sub-assembly connector.

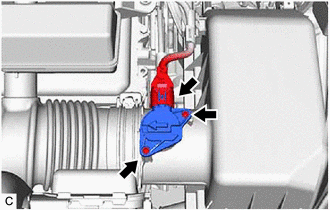

      GTY998645Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 screws and mass air flow meter sub-assembly from the air cleaner cap sub-assembly.
      NOTE:

      If the mass air flow meter sub-assembly has been struck or dropped, replace it.
