Installation [12/2022 - ]: Procedure

Torque: 4.5 N.m (46 kgf/cm, 40 in.lbf)

Torque: 4.5 N.m (46 kgf/cm, 40 in.lbf)

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

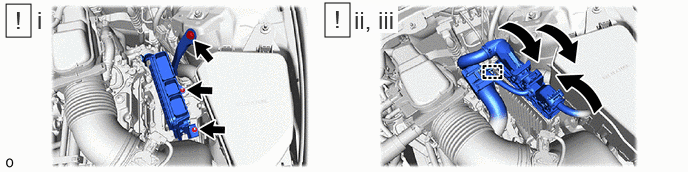

   1. Install the ECM with the bolt and 2 nuts.

      Torque: 8.0 N.m (82 kgf/cm, 71 in.lbf)

      NOTE:

      If the ECM has been struck or dropped, replace it.

   2. Engage the clamp and install the engine wire.
   3. Connect the 3 ECM connectors and rotate the 3 levers to lock them.
      NOTE:

      • When connecting the ECM connectors, make sure that the connecting parts of the ECM connectors are free of dirt, water and other foreign matter.
      • Be sure to securely connect the ECM connectors.

Refer to INSTALLATION [12/2022 - ]

Refer to REGISTRATION [12/2022 - ]

Refer to ECU CONFIGURATION [12/2022 - ]

Refer to UPDATE ECU SECURITY KEY [12/2022 - ]

Refer to WORK PROCEDURE [12/2022 - 10/2023] , or refer to WORK PROCEDURE [10/2023 - 04/2024] , or refer to WORK PROCEDURE [04/2024 - ]

HINT:

When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function that completes learning when the respective system is used.

Refer to AUTOMATIC LEARNING CHART [12/2022 - 04/2024] , or refer to AUTOMATIC LEARNING CHART [04/2024 - ]
