Inspection [12/2022 - ]: Procedure
- INSPECT ENGINE OIL TEMPERATURE SENSOR WARNING:
- Do not put your hands into the water that has been heated for the inspection.
- Touching the heated water could result in burns.

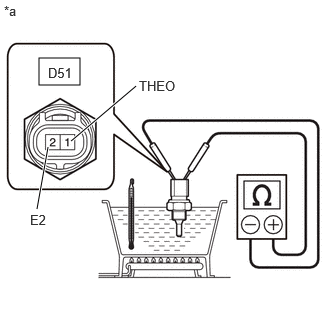

- Measure the resistance according to the value(s) in the table below.
*a Component without harness connected
(Engine Oil Temperature Sensor)Standard Resistance
Tester Connection Condition Specified Condition Result D51-1(THEO) - D51-2(E2) 30°C (86°F) 2.647 to 3.021 kΩ kΩ NOTE:If checking the engine oil temperature sensor in water, be careful not to allow water to contact the terminals. After checking, wipe the water off the engine oil temperature sensor.
- If the result is not as specified, replace the engine oil temperature sensor.
