Components [09/2022 - ]

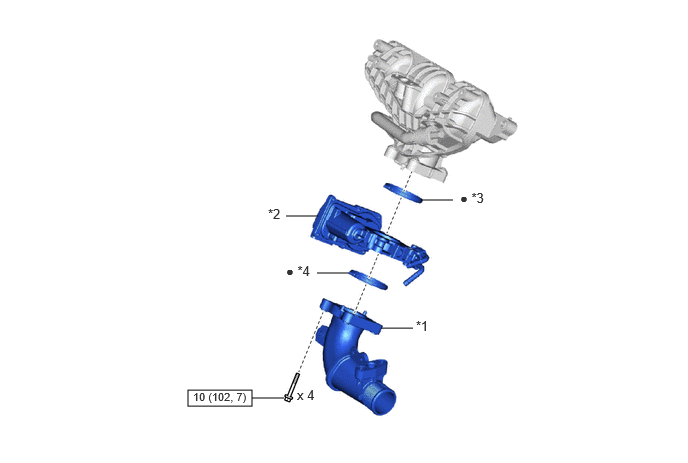

Fig 1: Throttle Body Replacement Components With Torque Specifications
GTY1104328Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 AIR TUBE ASSEMBLY *2 THROTTLE BODY WITH MOTOR ASSEMBLY
*3 THROTTLE BODY GASKET *4 NO. 2 THROTTLE BODY GASKET
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part
