Removal [11/2021 - ]: Procedure

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    Refer to PROCEDURE - Step 1

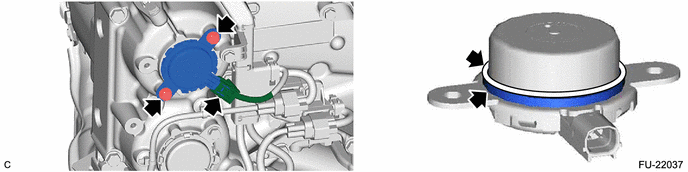

  2. REMOVE CAMSHAFT TIMING OIL CONTROL VALVE (for Intake Side of Bank 1)
    1. GTY1049727Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

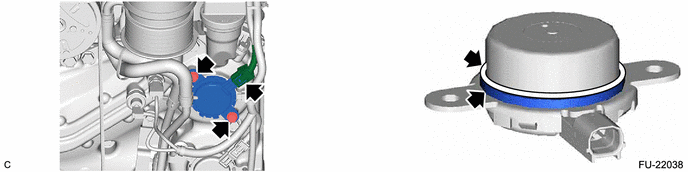

  3. REMOVE CAMSHAFT TIMING OIL CONTROL VALVE (for Intake Side of Bank 2)
    1. GTY1049729Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

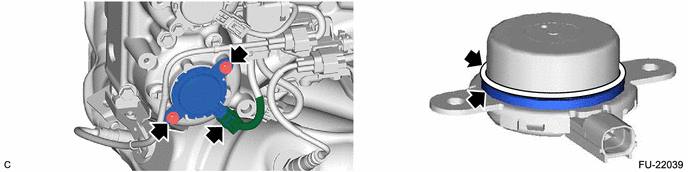

  4. REMOVE CAMSHAFT TIMING OIL CONTROL VALVE (for Exhaust Side of Bank 1)
    1. GTY1049741Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

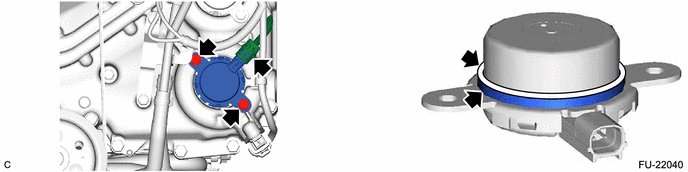

  5. REMOVE CAMSHAFT TIMING OIL CONTROL VALVE (for Exhaust Side of Bank 2)
    1. GTY1049743Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
