Components [10/2022 - ]

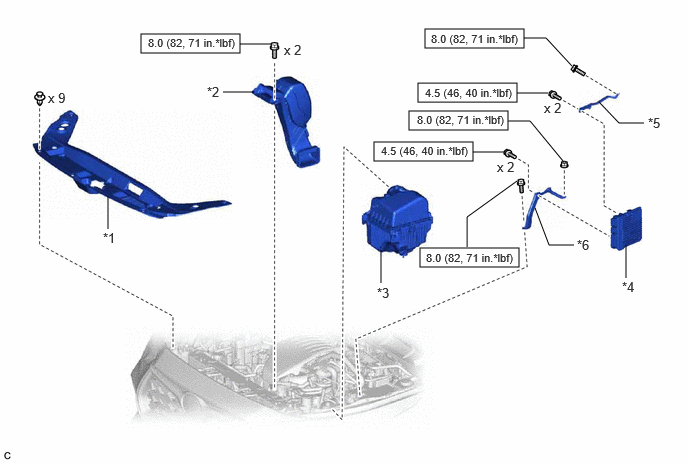

Fig 1: ECM Replacement Components With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	COOL AIR INTAKE DUCT SEAL	*2	INLET AIR CLEANER ASSEMBLY
*3	AIR CLEANER ASSEMBLY	*4	ECM
*5	NO. 1 ECM BRACKET	*6	NO. 2 ECM BRACKET
	N.m (kgf/cm, ft.lbf): Specified torque	-	-
