Components [10/2022 - ]

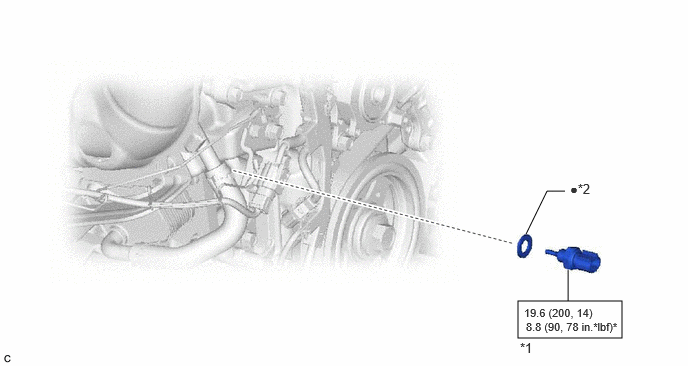

Fig 1: Engine Oil Temperature Sensor Replacement Components With Torque Specifications [10/2022 - ]
GTY1103471Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 ENGINE OIL TEMPERATURE SENSOR *2 GASKET
N.m (kgf/cm, ft.lbf): Specified torque * For use with SST
Non-reusable part - -
