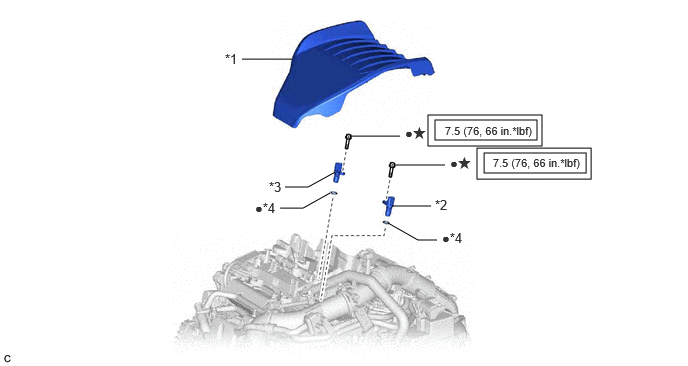

Components [10/2022 - ]
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | NO. 1 ENGINE COVER SUB-ASSEMBLY | *2 | CAMSHAFT POSITION SENSOR (for Intake Side) |
| *3 | CAMSHAFT POSITION SENSOR (for Exhaust Side) | *4 | O-RING |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | • | Non-reusable part | |
| * | Precoated part | - | - |
