Components [07/2020 - ]

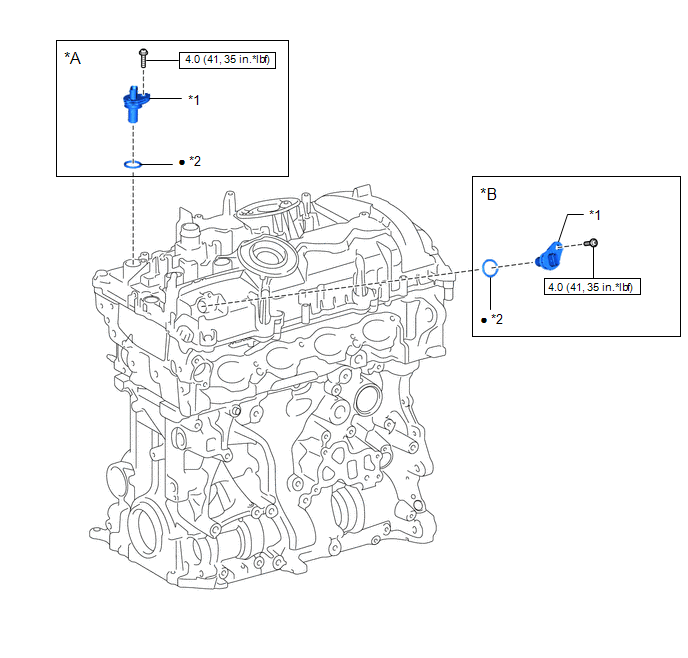

Fig 1: Camshaft Position Sensor Replacement Components With Torque Specifications [07/2020 - ]
GTY994729Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*A for Exhaust Side *B for Intake Side
*1 CAMSHAFT POSITION SENSOR *2 O-RING
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part
