ECM
›
Components [07/2020 - ]
Components [07/2020 - ]

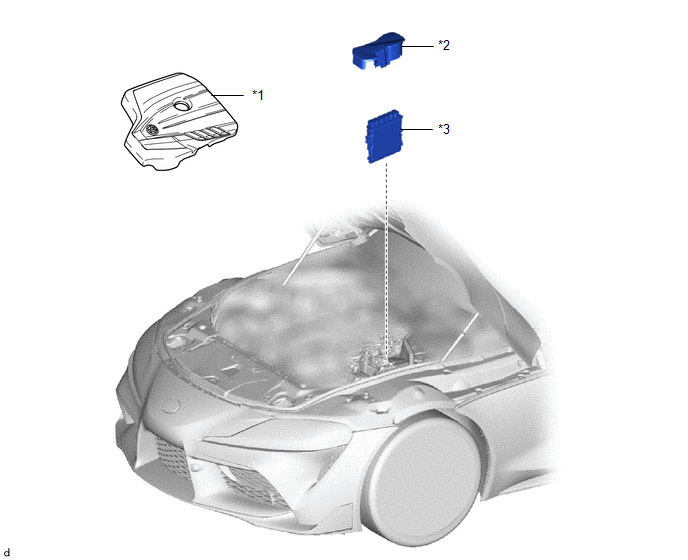

Fig 1: ECM Replacement Components [07/2020 - ]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
NO. 1 ENGINE COVER SUB-ASSEMBLY
*2
ENGINE ROOM ECU COVER
*3
ECM
-
-
