Removal [04/2024 - ]: Procedure
- REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY
See step 3 - DRAIN ENGINE COOLANT (for Engine)
Refer to PROCEDURE - Step 1
- REMOVE AIR CLEANER INLET ASSEMBLY
See step 3
- REMOVE AIR CLEANER ASSEMBLY WITH AIR CLEANER HOSE
See step 6
- REMOVE NO. 2 ENGINE COOLANT TEMPERATURE SENSOR NOTE:
If the No. 2 engine coolant temperature sensor has been struck or dropped, replace it.
- REMOVE INVERTER WITH CONVERTER ASSEMBLY
Refer to REMOVAL [04/2024 - ]

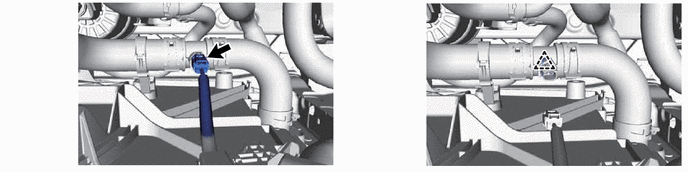

- REMOVE ENGINE COOLANT TEMPERATURE SENSOR NOTE:
If the engine coolant temperature sensor has been struck or dropped, replace it.
