Caution / Notice / Hint

COMPONENTS (REMOVAL)

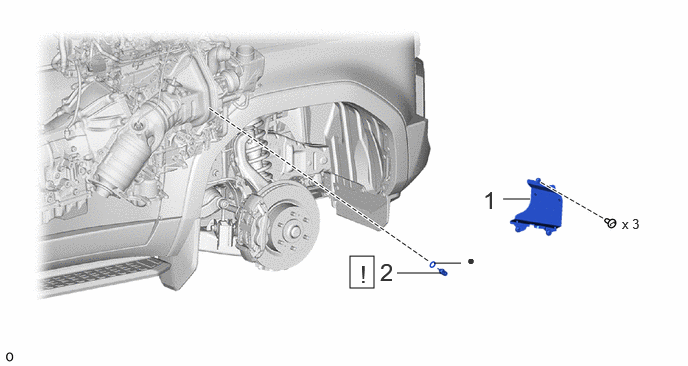

Fig 1: Engine Oil Temperature Sensor Removal Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
1	FRONT FENDER APRON TRIM PACKING A	53782	-	-	-
2	ENGINE OIL TEMPERATURE SENSOR	89429F	See step 2	-	-

•

Non-reusable part
