Inspection [02/2024 - ]: Procedure

  1. INSPECT VACUUM SWITCHING VALVE
    1. Measure the resistance.

      Standard Resistance

      Tester Connection Condition Specified Condition
      C130-1 (+B) - C130-2 (ACM) 20°C (68°F) 37 to 44 Ω

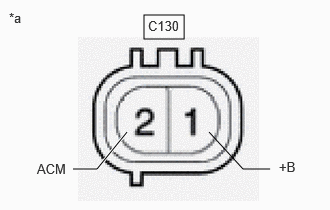

      GTY1221910Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component without harness connected
      (Vacuum Switching Valve)
    2. Check the operation of the vacuum switching valve assembly.
      GTY1225506Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Port F
      1. Apply negative pressure of 67 kPa (500 mmHg, 19.7 in.Hg) absolute pressure to "F"and check that the vacuum is maintained.
      2. Check air flows from "E" to the air filter.
        GTY1220009Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Port E
        *b Air Filter

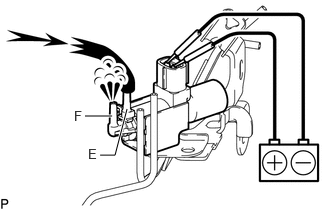

      3. Apply battery voltage across the terminals.
        GTY1181993Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      4. Check air flows from "E" to "F".
    3. If the result is not as specified, replace the vacuum switching valve.
