Air Pressure Sensor
›
Components [07/2020 - ]
Components [07/2020 - ]

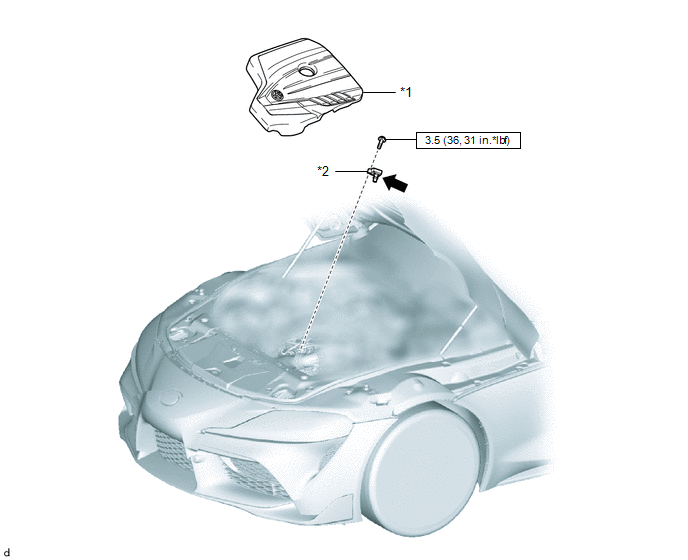

Fig 1: Air Pressure Sensor Replacement Components With Torque Specifications [07/2020 - ]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout
Description
Callout
Description
*1
NO. 1 ENGINE COVER SUB-ASSEMBLY
*2
AIR PRESSURE SENSOR
N*m (kgf*cm, ft.*lbf): Specified torque
Syntheso glep 1 lubricating grease
