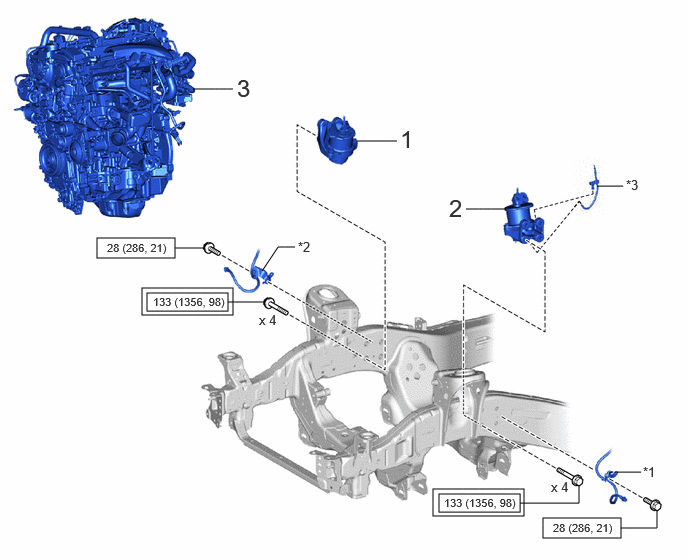

COMPONENTS (INSTALLATION)
| Callout / Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 1 | FRONT ENGINE MOUNTING INSULATOR RH | 12361E | - | - | - |
| 2 | FRONT ENGINE MOUNTING INSULATOR LH | 12362A | - | - | - |
| 3 | ENGINE ASSEMBLY | - | - | - | - |
| *1 | FRONT NO. 2 FLEXIBLE HOSE BRACKET LH | *2 | FRONT NO. 2 FLEXIBLE HOSE BRACKET RH |
| *3 | NO. 4 VENTILATION HOSE | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | N.m (kgf/cm, ft.lbf): Specified torque |
