Components [12/2019 - ]

Fig 1: ECM Replacement Components (1 Of 2)
GTY914792Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 BATTERY SERVICE HOLE COVER - -

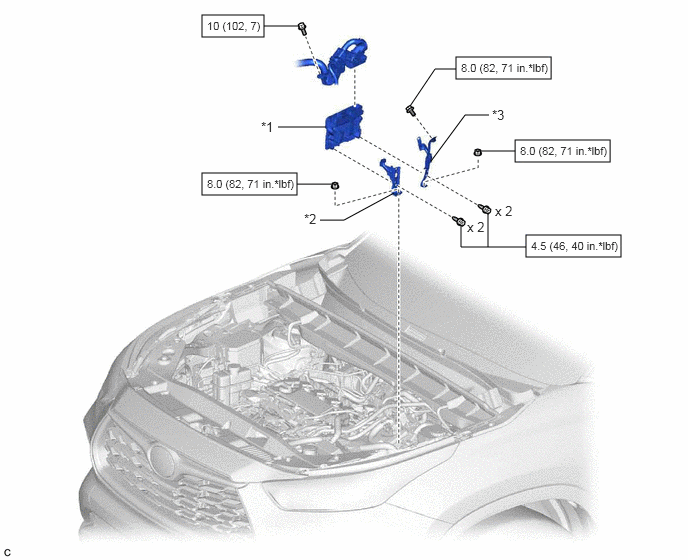

Fig 2: ECM Replacement Components With Torque Specifications (2 Of 2)
GTY910319Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 ECM *2 NO. 1 ECM BRACKET
*3 NO. 2 ECM BRACKET - -
N.m (kgf/cm, ft.lbf): Specified torque - -
