Components [10/2022 - ]

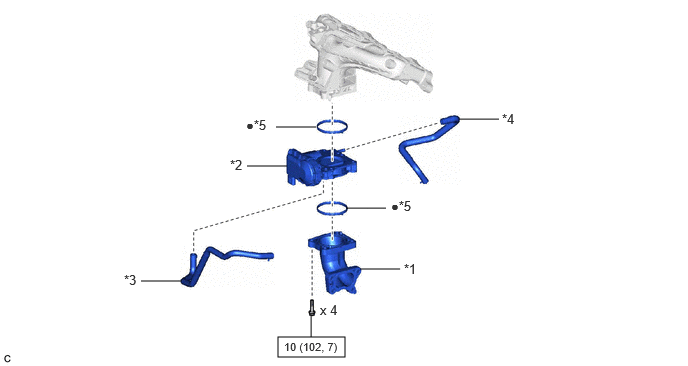

Fig 1: Throttle Body Replacement Components With Torque Specifications [10/2022 - ]

Callout	Description	Callout	Description
*1	NO. 2 AIR TUBE	*2	THROTTLE BODY WITH MOTOR ASSEMBLY
*3	NO. 4 WATER BY-PASS HOSE	*4	NO. 5 WATER BY-PASS HOSE
*5	THROTTLE BODY GASKET	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part
