Removal [02/2024 - ]: Procedure
- REMOVE FRONT WHEEL
Refer to REMOVAL [02/2024 - ]
- REMOVE AIR CLEANER CAP WITH NO. 1 AIR CLEANER HOSE (for RH Side)
Refer to PROCEDURE - Step 6
- REMOVE AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY (for RH Side)
Refer to PROCEDURE - Step 7
- REMOVE AIR CLEANER CASE SUB-ASSEMBLY (for RH Side)
Refer to PROCEDURE - Step 8

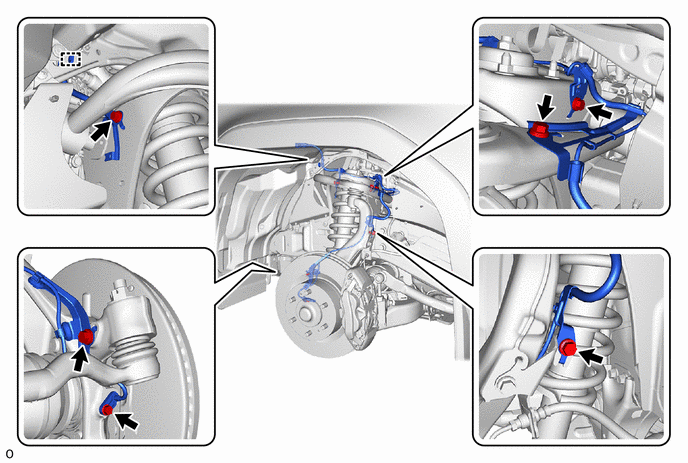

- REMOVE FRONT SPEED SENSOR NOTE:
- Keep the tip of the front speed sensor and installation hole free of foreign matter.
- Do not rotate or apply excessive force to the front speed sensor when removing it from the steering knuckle. Rotating or applying excessive force may result in damage to the front speed sensor.
