COMPONENTS (INSTALLATION)

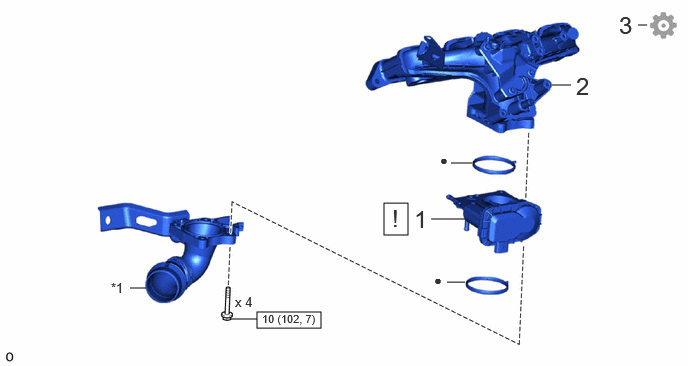

Fig 1: Throttle Body Installation Components With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout - Procedure		Part Name Code
1	THROTTLE BODY WITH MOTOR ASSEMBLY	22030	See step 1	-	-
2	INTAKE MANIFOLD	17111	-	-	-
3	PERFORM INITIALIZATION	-	-	-	See step 3

NO. 2 AIR TUBE

N.m (kgf/cm, ft.lbf): Specified torque

•

Non-reusable part
