Removal [02/2024 - ]: Procedure

  1. REMOVE FRONT WHEEL LH

    Refer to REMOVAL [02/2024 - ]

  2. REMOVE FRONT FENDER APRON TRIM PACKING D

    Refer to PROCEDURE - Step 12

  3. REMOVE VACUUM SWITCHING VALVE

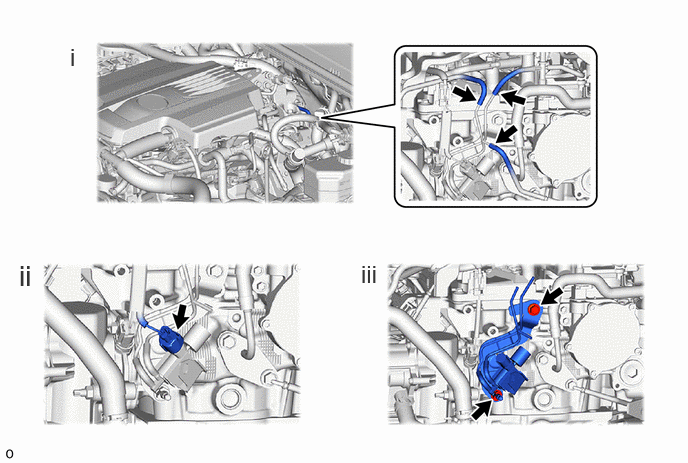

    1. GTY1221934Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disconnect the 3 hoses from vacuum switching valve.
      2. Disconnect the vacuum switching valve connector.
      3. Remove the bolt, nut and vacuum switching valve.
