Removal [02/2024 - ]: Procedure

  1. REMOVE HYBRID VEHICLE TRANSMISSION WITH TRANSFER

    Refer to REMOVAL [02/2024 - ]

  2. REMOVE VACUUM PUMP ASSEMBLY

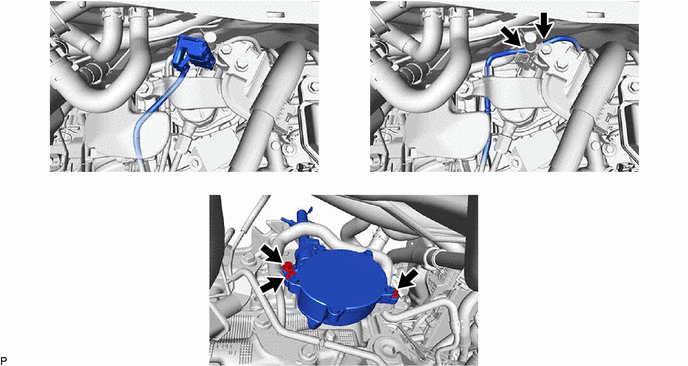

    1. GTY1220773Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE NO. 1 VACUUM PUMP O-RING
    1. GTY1063891Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE VACUUM PUMP CONNECTOR

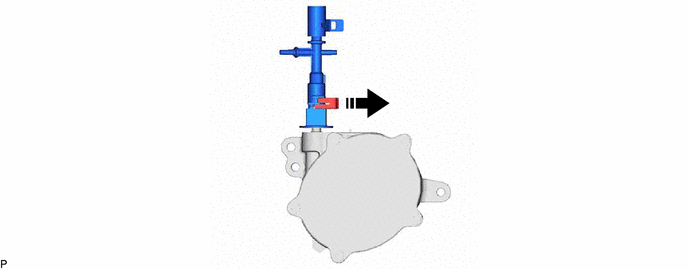

    1. GTY1186215Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Pull to unlock - -
  5. REMOVE PLUG
    1. GTY1189000Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
