Adjustment [02/2024 - ]: Procedure

  1. INSPECT TIRE

    Refer to INSPECTION [02/2024 - ]

  2. MEASURE VEHICLE HEIGHT
    NOTE:
    • Be sure to perform measurement on a level surface.
    • Inspect while the vehicle is unloaded.
    • The standard value shown here is a value that is used for performing a wheel alignment and does not indicate the height of an actual vehicle.

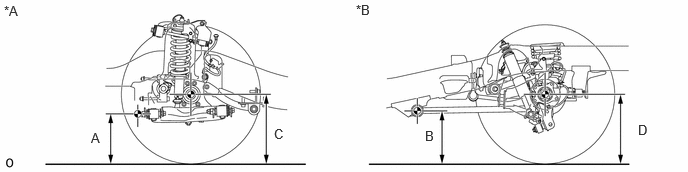

    GTY1220032Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *A for Front Side *B for Rear Side
    1. Press down on the vehicle several times to stabilize the suspension, and then measure the vehicle height.

      Measuring points

      A: Ground clearance of the front adjusting cam bolt center

      B: Ground to rear control arm bolt center (Front Side)

      C: Ground to front wheel center

      D: Ground to rear wheel center

      Vehicle Height (Unloaded Vehicle)

      Model Specification Front Vehicle Height
      C - A      		 Rear Vehicle Height
      D - B
      Stabilizer Roof Rear Seat Tire
      TJH250L-GNZUZA D I C A 109.8 mm (4.32 in.) 72.7 mm (2.86 in.)
      D I C B 109.8 mm (4.32 in.) 72.7 mm (2.86 in.)
      D I C C 124.8 mm (4.91 in.) 87.7 mm (3.45 in.)
      TJH250L-GNZAZA D C C A 107.0 mm (4.21 in.) 69.3 mm (2.73 in.)
      D C D A 106.2 mm (4.18 in.) 73.9 mm (2.91 in.)
      D I C A 109.6 mm (4.31 in.) 74.1 mm (2.92 in.)
      D I D A 109.5 mm (4.31 in.) 74.0 mm (2.91 in.)
      R C C A 109.5 mm (4.31 in.) 69.9 mm (2.75 in.)
      R C D A 108.7 mm (4.28 in.) 74.6 mm (2.94 in.)
      R I C A 107.7 mm (4.24 in.) 73.8 mm (2.91 in.)
      R I D A 107.6 mm (4.24 in.) 73.6 mm (2.90 in.)
      D C C B 107.0 mm (4.21 in.) 69.3 mm (2.73 in.)
      D C D B 106.2 mm (4.18 in.) 73.9 mm (2.91 in.)
      D I C B 109.6 mm (4.31 in.) 74.1 mm (2.92 in.)
      D I D B 109.5 mm (4.31 in.) 74.0 mm (2.91 in.)
      R C C B 109.5 mm (4.31 in.) 69.9 mm (2.75 in.)
      R C D B 108.7 mm (4.28 in.) 74.6 mm (2.94 in.)
      R I C B 107.7 mm (4.24 in.) 73.8 mm (2.91 in.)
      R I D B 107.6 mm (4.24 in.) 73.6 mm (2.90 in.)
      D C C C 122.0 mm (4.80 in.) 84.3 mm (3.32 in.)
      D C D C 121.2 mm (4.77 in.) 88.9 mm (3.50 in.)
      D I C C 124.6 mm (4.91 in.) 89.1 mm (3.51 in.)
      D I D C 124.5 mm (4.90 in.) 89.0 mm (3.50 in.)
      R C C C 124.5 mm (4.90 in.) 84.9 mm (3.34 in.)
      R C D C 123.7 mm (4.87 in.) 89.6 mm (3.53 in.)
      R I C C 122.7 mm (4.83 in.) 88.8 mm (3.50 in.)
      R I D C 122.6 mm (4.83 in.) 88.6 mm (3.49 in.)

      HINT:

      Check the specifications using the Wheel Alignment Table Specification Code List at the start of appropriate service information .

      If the vehicle height is not as specified, adjust the height by pressing down on the vehicle several times to stabilize the suspension.

  3. INSPECT CAMBER, CASTER AND STEERING AXIS INCLINATION
    NOTE:

    Inspect while the vehicle is unloaded.

    1. Install the camber-caster-kingpin gauge or place the front wheels on the center of the wheel alignment tester.
      GTY615981Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Wheel Alignment Tester
      *b Camber-caster-kingpin Gauge
    2. Inspect the camber, caster and steering axis inclination.

      Wheel Alignment(Unloaded Vehicle)

      Model Specification Camber Caster Steering Axis Inclination
      Stabilizer Roof Rear Seat Tire
      TJH250L-GNZUZA D I C A 0°15' (0.25°) 4°18' (4.30°) 13°37' (13.63°)
      D I C B 0°15' (0.25°) 4°18' (4.30°) 13°37' (13.63°)
      D I C C -0°08' (-0.13°) 4°42' (4.70°) 14°01' (14.03°)
      TJH250L-GNZAZA D C C A 0°19' (0.32°) 4°13' (4.22°) 13°33' (13.55°)
      D C D A 0°19' (0.32°) 4°21' (4.36°) 13°33' (13.55°)
      D I C A 0°15' (0.25°) 4°21' (4.35°) 13°37' (13.63°)
      D I D A 0°15' (0.25°) 4°22' (4.37°) 13°37' (13.63°)
      R C C A 0°16' (0.27°) 4°12' (4.22°) 13°36' (13.60°)
      R C D A 0°16' (0.27°) 4°21' (4.36°) 13°36' (13.60°)
      R I C A 0°18' (0.30°) 4°19' (4.33°) 13°34' (13.58°)
      R I D A 0°18' (0.30°) 4°20' (4.35°) 13°34' (13.58°)
      D C C B 0°19' (0.32°) 4°13' (4.22°) 13°33' (13.55°)
      D C D B 0°19' (0.32°) 4°21' (4.36°) 13°33' (13.55°)
      D I C B 0°15' (0.25°) 4°21' (4.35°) 13°37' (13.63°)
      D I D B 0°15' (0.25°) 4°22' (4.37°) 13°37' (13.63°)
      R C C B 0°16' (0.27°) 4°12' (4.22°) 13°36' (13.60°)
      R C D B 0°16' (0.27°) 4°21' (4.36°) 13°36' (13.60°)
      R I C B 0°18' (0.30°) 4°19' (4.33°) 13°34' (13.58°)
      R I D B 0°18' (0.30°) 4°20' (4.35°) 13°34' (13.58°)
      D C C C -0°03' (-0.05°) 4°37' (4.62°) 13°57' (13.95°)
      D C D C -0°03' (-0.05°) 4°45' (4.76°) 13°57' (13.95°)
      D I C C -0°08' (-0.13°) 4°45' (4.75°) 14°01' (14.03°)
      D I D C -0°08' (-0.13°) 4°46' (4.77°) 14°01' (14.03°)
      R C C C -0°06' (-0.10°) 4°36 (4.62°) 14°00' (14.00°)
      R C D C -0°06' (-0.10°) 4°45' (4.76°) 14°00' (14.00°)
      R I C C -0°05' (-0.08°) 4°43' (4.72°) 13°58' (13.97°)
      R I D C -0°05' (-0.08°) 4°44' (4.74°) 13°58' (13.97°)

      Tolerance

      Camber Caster Steering Axis Inclination
      +/-0°45' (+/-0.75°) +/-0°45' (+/-0.75°) +/-0°45' (+/-0.75°)

      Left-right Difference

      Camber Caster
      0°45' (+/-0.75°) or less 0°45' (+/-0.75°) or less

      HINT:

      Check the specifications using the Wheel Alignment Table Specification Code List at the start of appropriate service information .

      If the camber and caster are not as specified, adjust them.

      If the steering axis inclination is not as specified after the camber and caster have been correctly adjusted, check the steering knuckle and front wheel for distortion or looseness.

  4. ADJUST CAMBER AND CASTER
    NOTE:

    After the camber has been adjusted, inspect the toe-in.

    1. Remove the front bumper guard base cover.

      Refer to PROCEDURE - Step 5

    2. Remove the No. 1 engine under cover sub-assembly.

      Refer to PROCEDURE - Step 6

    3. Remove the No. 2 engine under cover assembly.

      Refer to PROCEDURE - Step 7

    4. Loosen the bolt and nut.
    5. Turn the front adjusting cam and rear adjusting cam in both directions, and adjust the camber and caster to the center value.

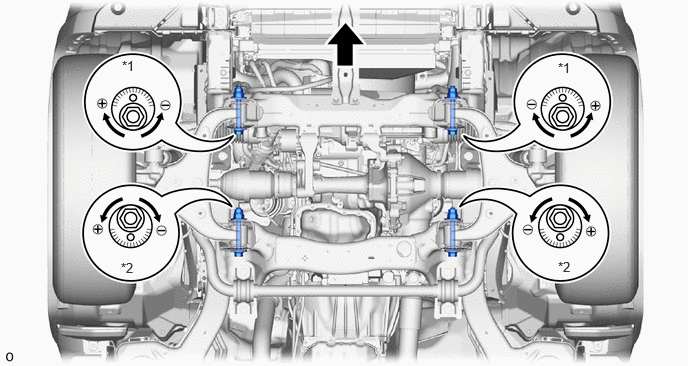

      GTY1216815Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Front Adjusting Cam *2 Rear Adjusting Cam
      Front of the Vehicle - -
    6. Turn the adjusting cams to adjust the camber and caster.

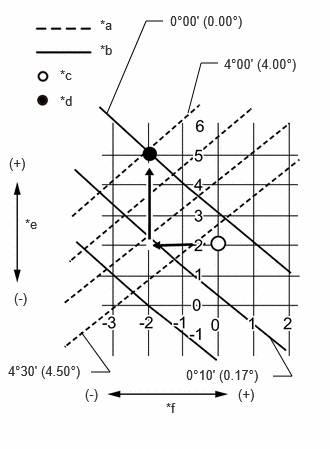

    7. GTY1218832Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Caster
      *b Camber
      *c Measured Value
      *d Standard Value
      *e Front Cam
      *f Rear Cam

      Read the adjustment chart (example).

      1. Find the wheel alignment standard value applicable for the particular model.
      2. Mark the selected standard value on the adjustment chart.

        Standard Value (Reference)

        Camber Caster
        0°00' (0.00°) 4°00' (4.00°)
      3. Mark the alignment value measured when the vehicle is unloaded on the adjustment chart.

        Measured Value (Reference)

        Camber Caster
        0°05' (0.08°) 4°35' (4.58°)
      4. As shown in the chart, read the distance from the marked point to 0, and adjust the front and/ or rear adjusting cams accordingly.

        Amount to Turn Adjusting Cams (by Gradation)

        Front adjusting cam Rear adjusting cam
        +3.0 -2.0

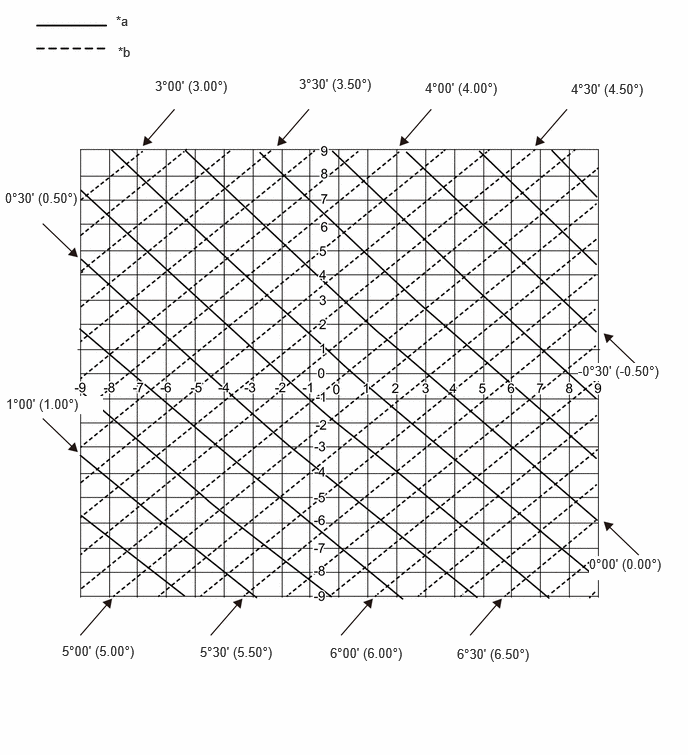

        GTY1213325Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Camber *b Caster

        HINT:

        • The Front adjust cam to (+) by 1 notch changes the caster by +0°04' and camber by +0°07'.
        • The Rear adjust cam to (+) by 1 notch changes the caster by +0°04' and camber by +0°07'.
    8. Tighten the bolt and nut.

      Torque: 295 N.m (3008 kgf/cm, 218 ft.lbf)

    9. Install the No. 2 engine under cover assembly.

      Refer to PROCEDURE - Step 47

    10. Install the No. 1 engine under cover sub-assembly.

      Refer to PROCEDURE - Step 48

    11. Install the front bumper guard base cover.

      Refer to PROCEDURE - Step 49

  5. INSPECT TOE-IN
    NOTE:

    Inspect while the vehicle is unloaded.

    GTY723595Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    Front of the Vehicle
    1. Bounce the vehicle up and down at the corners to stabilize the suspension, and then inspect the toe-in.

      Toe-in (Unloaded Vehicle)

      Model Specification Toe-in (Angle)
      A + B      		 Toe-in (Width)
      C - D
      Stabilizer Roof Rear Seat Tire
      TJH250L-GNZUZA D I C A 0°10' (0.17°) 4.38 mm (0.17 in.)
      D I C B 0°10' (0.17°) 4.52 mm (0.18 in.)
      D I C C -0°05' (-0.08°) -2.10 mm (-0.08 in.)
      TJH250L-GNZAZA D C C A 0°13' (0.22°) 5.76 mm (0.23 in.)
      D C D A 0°13' (0.22°) 5.76 mm (0.23 in.)
      D I C A 0°10' (0.17°) 4.38 mm (0.17 in.)
      D I D A 0°10' (0.17°) 4.38 mm (0.17 in.)
      R C C A 0°11' (0.18°) 4.84 mm (0.19 in.)
      R C D A 0°11' (0.18°) 4.84 mm (0.19 in.)
      R I C A 0°12' (0.20°) 5.30 mm (0.21 in.)
      R I D A 0°12' (0.20°) 5.30 mm (0.21 in.)
      D C C B 0°13' (0.22°) 5.96 mm (0.23 in.)
      D C D B 0°13' (0.22°) 5.96 mm (0.23 in.)
      D I C B 0°10' (0.17°) 4.52 mm (0.18 in.)
      D I D B 0°10' (0.17°) 4.52 mm (0.18 in.)
      R C C B 0°11' (0.18°) 5.00 mm (0.20 in.)
      R C D B 0°11' (0.18°) 5.00 mm (0.20 in.)
      R I C B 0°12' (0.20°) 5.48 mm (0.22 in.)
      R I D B 0°12' (0.20°) 5.48 mm (0.22 in.)
      D C C C -0°02' (-0.03°) -0.86 mm (-0.03 in.)
      D C D C -0°02' (-0.03°) -0.86 mm (-0.03 in.)
      D I C C -0°05' (-0.08°) -2.10 mm (-0.08 in.)
      D I D C -0°05' (-0.08°) -2.10 mm (-0.08 in.)
      R C C C -0°04' (-0.06°) -1.68 mm (-0.07 in.)
      R C D C -0°04' (-0.06°) -1.68 mm (-0.07 in.)
      R I C C -0°03' (-0.05°) -1.26 mm (-0.05 in.)
      R I D C -0°03' (-0.05°) -1.26 mm (-0.05 in.)

      Tolerance

      Toe-in Angle Toe-in Width
      +/-0°09' (+/-0.16°) +/-2 mm (+/-0.079 in.)

      HINT:

      Check the specifications using the Wheel Alignment Table Specification Code List at the start of appropriate service information .

      If the toe-in is not as specified, adjust it at the rack ends.

  6. ADJUST TOE-IN
    1. Remove the clip from the steering rack boot.
    2. Loosen the nut of the tie rod.

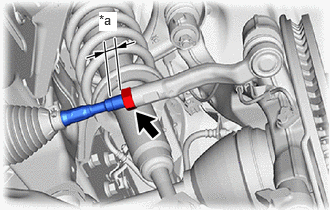

      GTY1211090Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Thread Length
    3. Turn the right and left rack ends by an equal amount to adjust the toe-in to the center value.
    4. Check that the length of the right and left rack ends are approximately the same.

      Standard difference

      1.5 mm (0.059 in.) or less

    5. Hold the tie rod and tighten the nut.

      Refer to PROCEDURE - Step 11

    6. Place the steering rack boots on the seats and install the steering rack boot clips.

      Refer to PROCEDURE - Step 5

    7. Check that the tie rod is at the ball joint movable range center.
  7. INSPECT WHEEL ANGLE
    NOTE:

    Inspect while the vehicle is unloaded.

    1. Turn the steering wheel until it stops and measure the wheel angle.
      GTY1046325Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Inside
      *b Outside
      Front of the Vehicle

      Wheel Turning Angle (Unloaded Vehicle)

      Model Specification Inside Wheel Angle Outside Wheel Angle
      Stabilizer Roof Rear Seat Tire
      TJH250L-GNZUZA D I C A 35°37'(35.63°) 31°47'(31.79°)
      D I C B 35°37'(35.63°) 31°47'(31.79°)
      D I C C 35°23'(35.39°) 31°23'(31.39°)
      TJH250L-GNZAZA D C C A 35°40'(35.67°) 31°52'(31.88°)
      D C D A 35°40'(35.67°) 31°52'(31.88°)
      D I C A 35°37'(35.63°) 31°47'(31.79°)
      D I D A 35°37'(35.63°) 31°47'(31.79°)
      R C C A 35°38'(35.64°) 31°49'(31.82°)
      R C D A 35°38'(35.64°) 31°49'(31.82°)
      R I C A 35°38'(35.65°) 31°51'(31.85°)
      R I D A 35°38'(35.65°) 31°51'(31.85°)
      D C C B 35°40'(35.67°) 31°52'(31.88°)
      D C D B 35°40'(35.67°) 31°52'(31.88°)
      D I C B 35°37'(35.63°) 31°47'(31.79°)
      D I D B 35°37'(35.63°) 31°47'(31.79°)
      R C C B 35°38'(35.64°) 31°49'(31.82°)
      R C D B 35°38'(35.64°) 31°49'(31.82°)
      R I C B 35°38'(35.65°) 31°51'(31.85°)
      R I D B 35°38'(35.65°) 31°51'(31.85°)
      D C C C 35°26'(35.44°) 31°28'(31.47°)
      D C D C 35°26'(35.44°) 31°28'(31.47°)
      D I C C 35°23'(35.39°) 31°23'(31.39°)
      D I D C 35°23'(35.39°) 31°23'(31.39°)
      R C C C 35°24'(35.41°) 31°25'(31.42°)
      R C D C 35°24'(35.41°) 31°25'(31.42°)
      R I C C 35°25'(35.43°) 31°26'(31.44°)
      R I D C 35°25'(35.43°) 31°26'(31.44°)

      Tolerance

      Inside Wheel Angle Outside Wheel Angle
      +/-2°00' (+/-2.00°) +/-2°00' (+/-2.00°)

      HINT:

      Check the specifications using the Wheel Alignment Table Specification Code List at the start of appropriate service information .

  8. PERFORM CALIBRATION

    Refer to RESET MEMORY / CALIBRATION [02/2024 - ]
