Components [06/2020 - ]

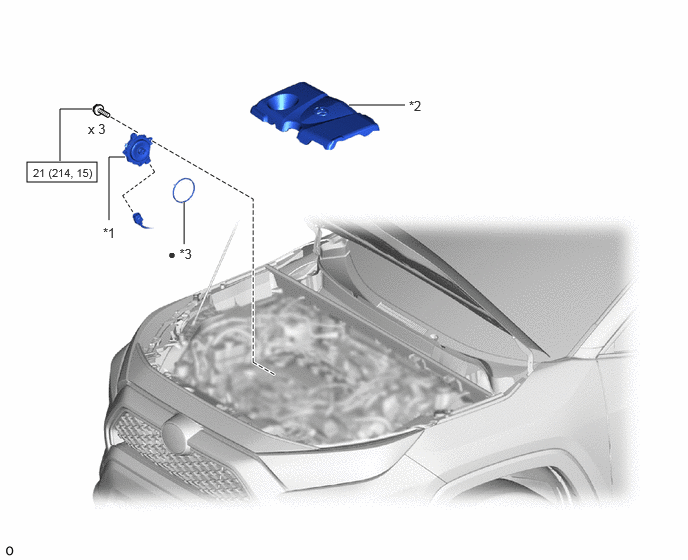

Fig 1: Camshaft Timing Control Motor Replacement Components With Torque Specifications

Callout	Description	Callout	Description
*1	CAM TIMING CONTROL MOTOR WITH EDU ASSEMBLY	*2	NO. 1 ENGINE COVER SUB-ASSEMBLY
*3	CAM TIMING CONTROL MOTOR O-RING	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part
