Removal [09/2022 - ]: Procedure
- REMOVE FRONT DOOR SCUFF PLATE LH
Refer to PROCEDURE - Step 1 [09/2022 - 08/2023] , or refer to PROCEDURE - Step 1 [08/2023 - ]
- REMOVE COWL SIDE TRIM SUB-ASSEMBLY LH
Refer to PROCEDURE - Step 2 [09/2022 - 08/2023] , or refer to PROCEDURE - Step 2 [08/2023 - ]
- REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

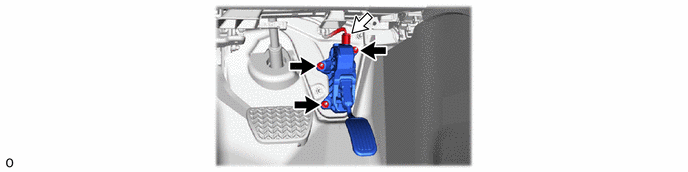

Refer to PROCEDURE - Step 3 [09/2022 - 08/2023] , or refer to PROCEDURE - Step 3 [08/2023 - ] - REMOVE ACCELERATOR PEDAL (WITH SENSOR) ROD ASSEMBLY NOTE:
- Avoid excessive force to the accelerator pedal (with sensor) rod assembly.
- Do not disassemble the accelerator pedal (with sensor) rod assembly.
- This accelerator pedal (with sensor) rod assembly does not require lubrication.
Do not apply oil or lubricant to the accelerator pedal (with sensor) rod assembly.
If applied, the accelerator pedal (with sensor) rod assembly must be replaced.
