Removal [09/2022 - ]: Procedure

  1. DRAIN ENGINE COOLANT

    Refer to PROCEDURE - Step 2

  2. REMOVE INTERCOOLER ASSEMBLY

    Refer to REMOVAL [09/2022 - ]

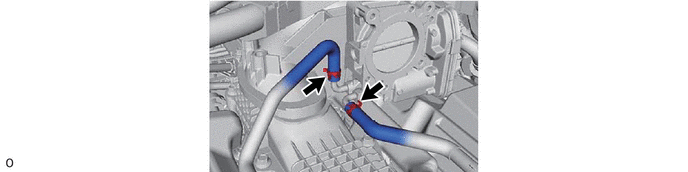

  3. REMOVE THROTTLE WITH THROTTLE POSITION SENSOR BODY ASSEMBLY
    GTY1041218Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
