Installation [03/2019 - ]: Procedure

1. Clean the bore hole for the rear skid control sensor wire.
2. Coat the bore hole for the rear skid control sensor wire with NBU 12K Lubricating Grease.
3. Install rear skid control sensor wire.
4. Replace the E11 bolt.
5. Tighten down E11 bolt (2).

   Torque: 11.8 N*m (120 kgf*cm, 9 ft.*lbf)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

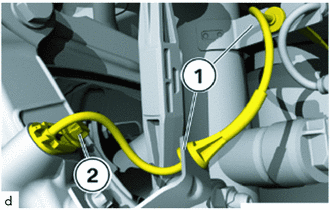

6. Connect the cable of the rear skid control sensor wire in the brackets (1).

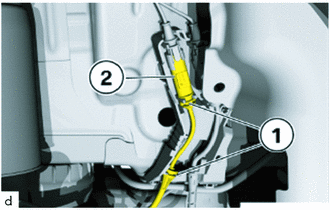

7. Connect the cable of the rear skid control sensor wire (2) in the brackets (1).

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

8. Connect connectors and lock.
9. Position the rear wheel hose liner correctly.
10. Tighten down nut.

    Torque: 2.6 N*m (27 kgf*cm, 23 in.*lbf)

Refer to INSTALLATION [03/2019 - ]
