Components [03/2019 - ]

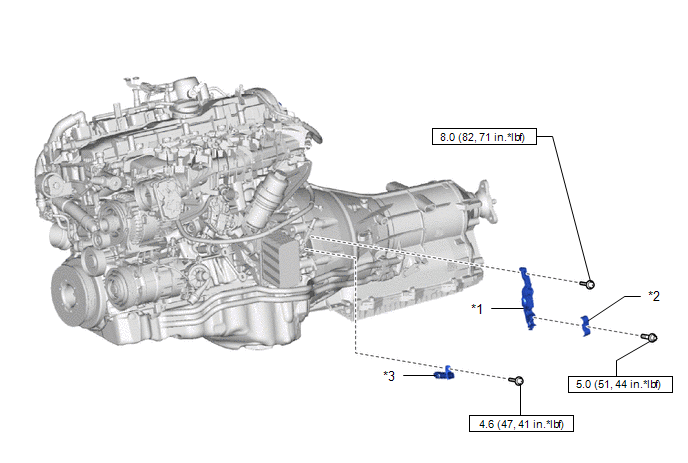

Fig 1: Crankshaft Position Sensor Replacement Components With Torque Specifications [03/2019 - ]
GTY916738Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 NO. 2 AUTOMATIC TRANSMISSION OIL COOLER TUBE CLAMP *2 NO. 3 AUTOMATIC TRANSMISSION OIL COOLER TUBE CLAMP
*3 CRANKSHAFT POSITION SENSOR - -
N*m (kgf*cm, ft.*lbf): Specified torque - -
