Components [03/2019 - ]

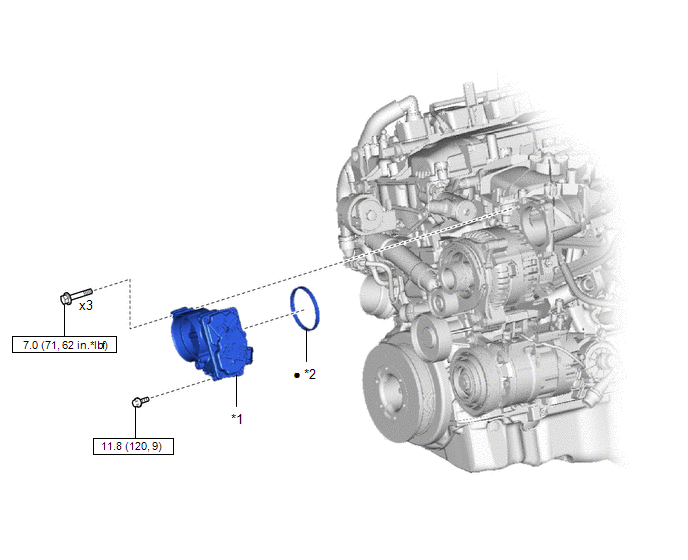

Fig 1: Throttle Body Replacement Components With Torque Specifications [03/2019 - ]
GTY933970Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 THROTTLE BODY WITH MOTOR ASSEMBLY *2 THROTTLE BODY GASKET
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part
