Removal [03/2024 - ]: Procedure

  1. DISCONNECT ENGINE WIRE

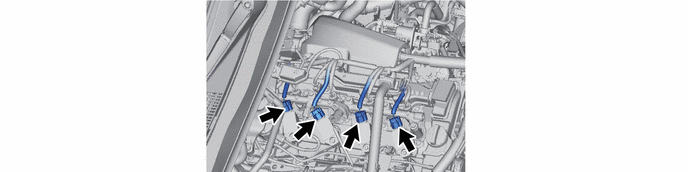

    1. GTY1184792Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE IGNITION COIL ASSEMBLY

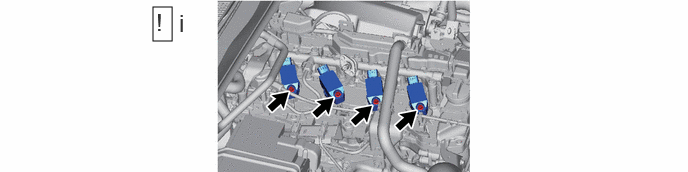

    1. GTY1193815Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using an 8 mm socket wrench, remove the 4 bolts and 4 ignition coil assemblies from the cylinder head cover sub-assembly.
        NOTE:

        If an ignition coil assembly has been struck or dropped, replace it.

  3. REMOVE SPARK PLUG
    Refer to REMOVAL [12/2023 - ]
