Removal [03/2024 - ]: Procedure

  1. REMOVE INTAKE MANIFOLD WITH THROTTLE BODY ASSEMBLY

    Refer to REMOVAL [03/2024 - 12/2024] , or refer to REMOVAL [12/2024 - ]

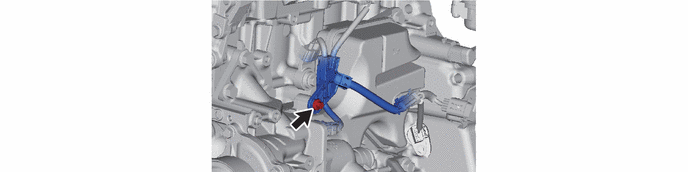

  2. DISCONNECT WIRE HARNESS
    1. GTY1184729Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

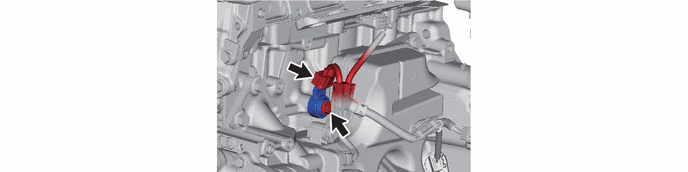

  3. REMOVE KNOCK CONTROL SENSOR
    NOTE:

    If the knock control sensor has been struck or dropped, replace it.
    1. GTY1183309Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
