Caution / Notice / Hint

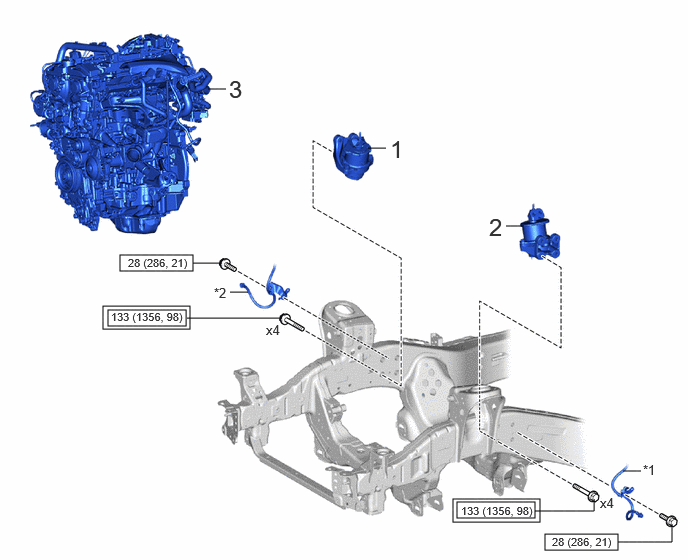

COMPONENTS (INSTALLATION)
| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 1 | FRONT ENGINE MOUNTING INSULATOR RH | 12361E | See step 1 | - | - |
| 2 | FRONT ENGINE MOUNTING INSULATOR LH | 12362A | See step 2 | - | - |
| 3 | ENGINE ASSEMBLY | - | - | - | - |
| *1 | FRONT NO. 2 FLEXIBLE HOSE BRACKET LH | *2 | FRONT NO. 2 FLEXIBLE HOSE BRACKET RH |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | N*m (kgf*cm, ft.*lbf): Specified torque |
